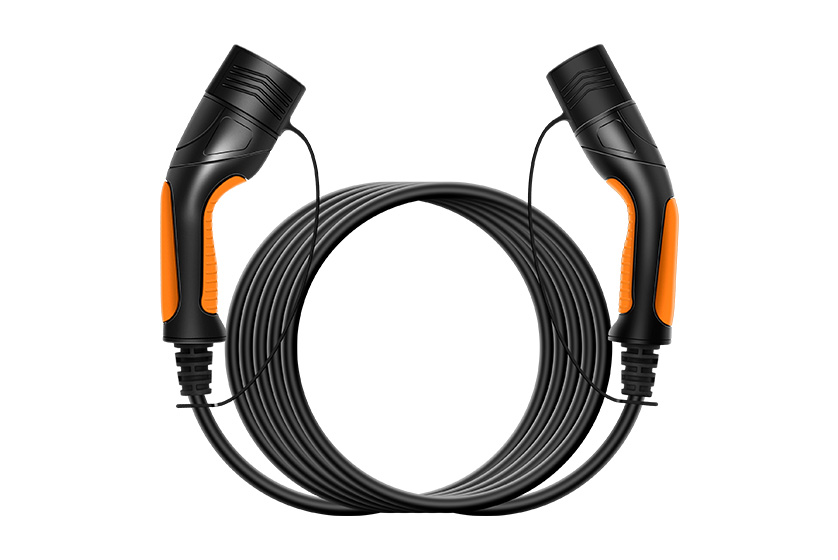

| Model | Power Supply Type | Voltage | Current | Max Power | Standard | Cable Spec | Total Cable Length | IP-Class | Fire-Rating | Operating Temperature |
| 1P 16A KEVP-31-D-ORANGE | Single-phase | 220-250V AC | 16 A | 3.7kW | IEC/EN 62196 | EN50620 & IEC62893 3*2.5mm²+1*0.75mm² | 5m | IP54 | UL94 V-0 | -30°C ~ 50°C |
| 1P 32A KEVP-31-D-ORANGE | Single-phase | 220-250V AC | 32A | 7.4kW | IEC/EN 62196 | EN50620 & IEC62893 3*6mm²+1*0.75mm² | 5m | IP54 | UL94 V-0 | -30°C ~ 50°C |
| 3P 16A KEVP-31-D-ORANGE | Three-phase | 380-450V AC | 16 A | 11.0kW | IEC/EN 62196 | EN50620 & IEC62893 5*2.5mm²+1*0.75mm² | 5m | IP54 | UL94 V-0 | -30°C ~ 50°C |
| 3P 32A KEVP-31-D-ORANGE | Three-phase | 380-450V AC | 32A | 22.0kW | IEC/EN 62196 | EN50620 & IEC62893 5*6mm²+1*0.75mm² | 5m | IP54 | UL94 V-0 | -30°C ~ 50°C |
